Description

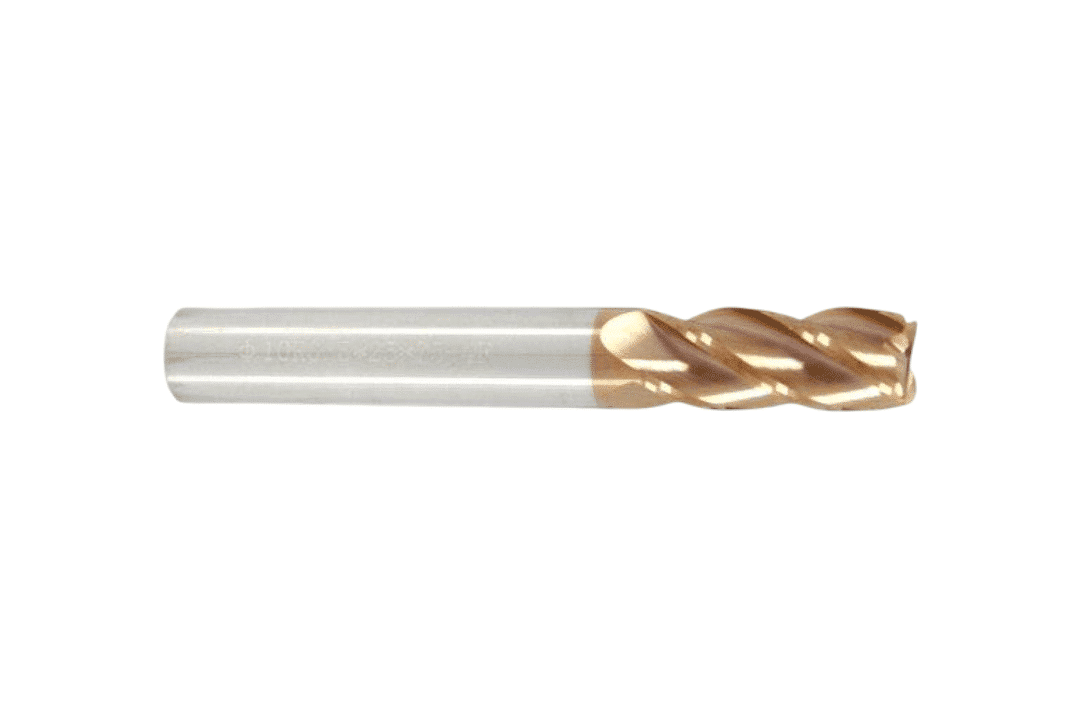

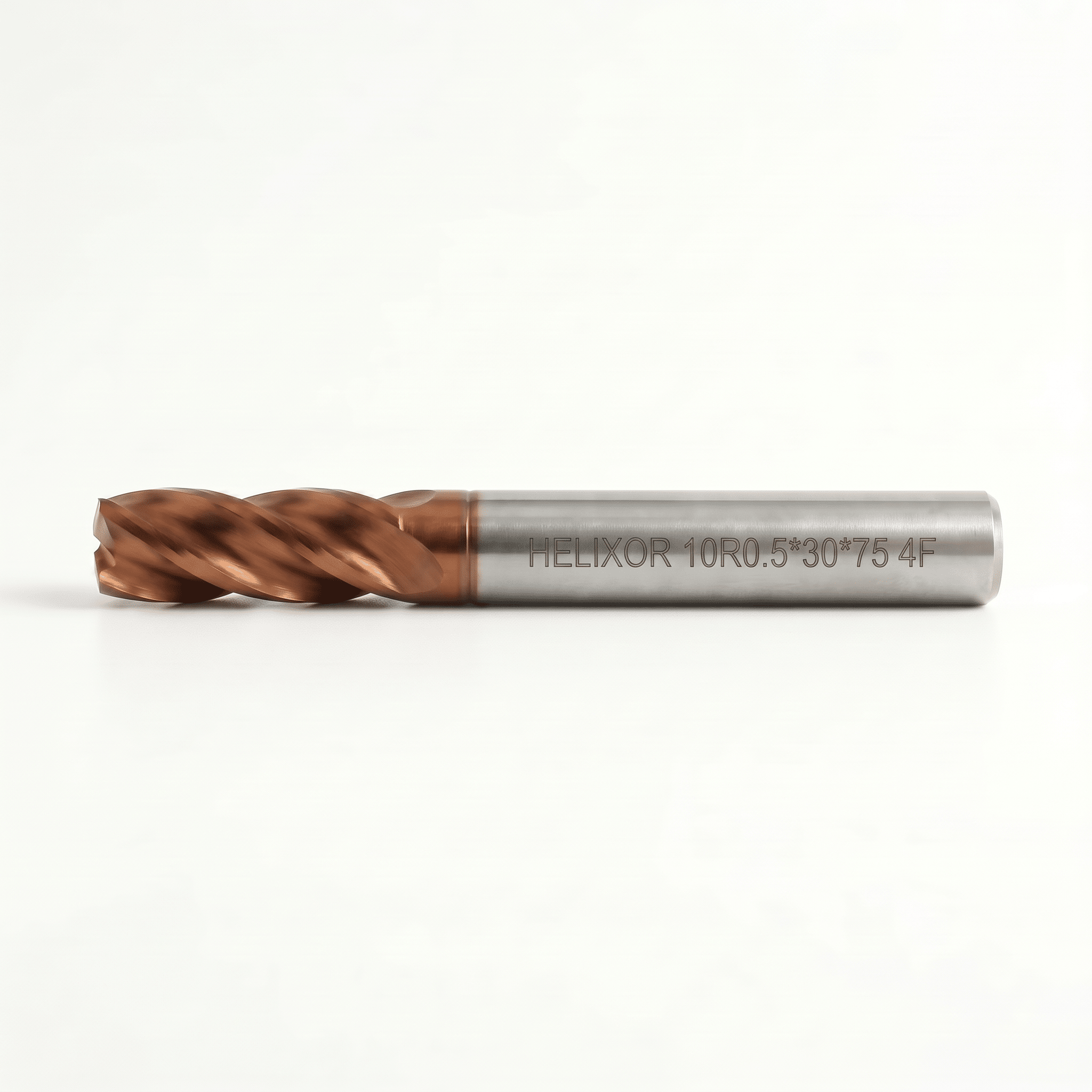

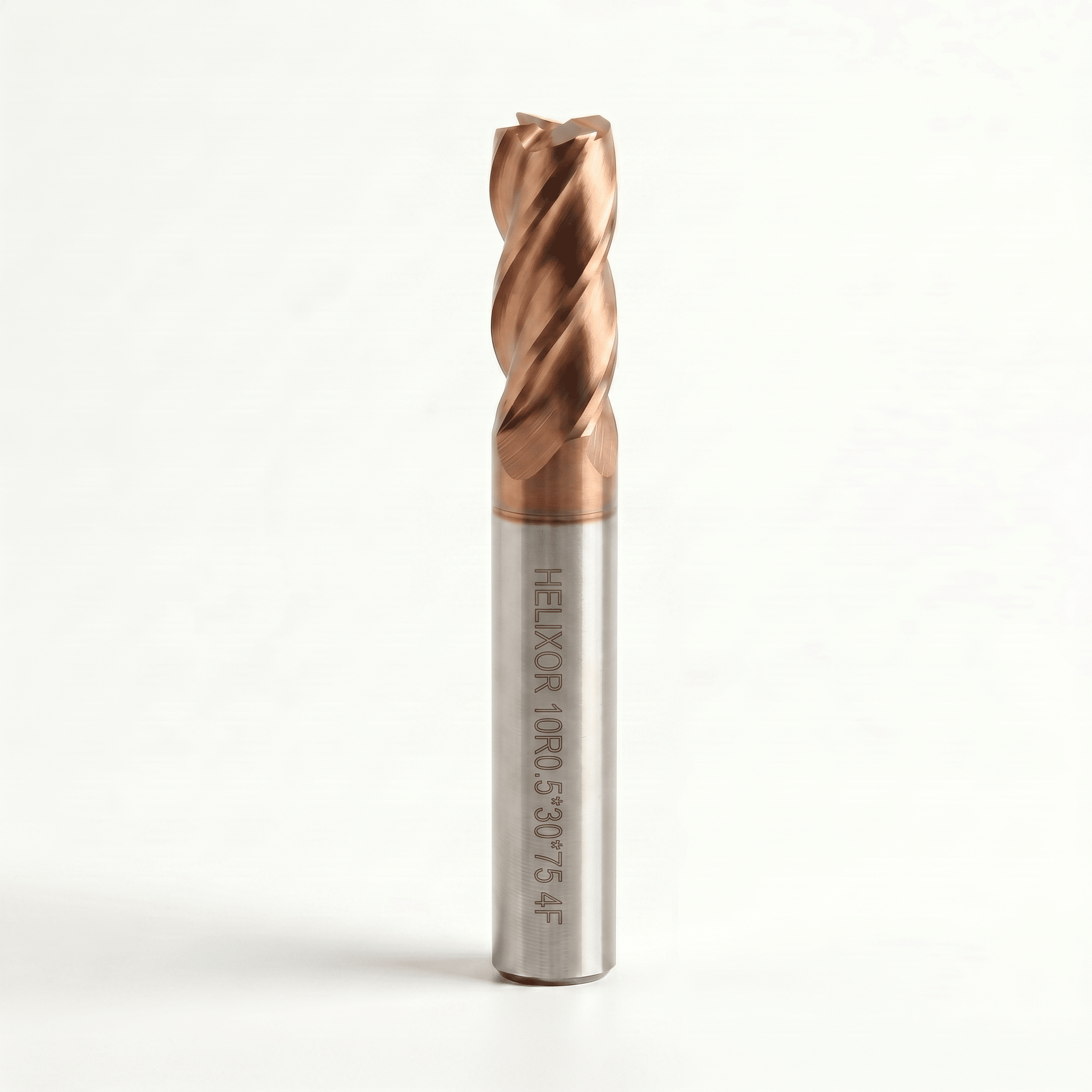

The Helixor HX55 10mm 4 Flute R0.5 Corner Radius End Mill is a 4-flute solid carbide corner radius end mill engineered for steel and harder materials. The radiused corners add edge strength and reduce chipping compared with a sharp square end, giving excellent rigidity and longer tool life in high-speed CNC machining.
Why choose this corner radius end mill?
A sharp square corner is the weakest point of an end mill. A small corner radius spreads the cutting load, so the tool resists chipping, lasts longer and leaves a small fillet at the base of walls instead of a stress-raising sharp corner.
Recommended materials
- Hardened steels
- Alloy and carbon steels
- Stainless steels
- Cast iron
Typical applications
- Profiling and contouring
- Slotting
- Pocketing with a filleted floor
- General-purpose milling
Specifications
| Brand | Helixor |
|---|---|
| Type | Corner radius |
| Flutes | 4 |
| Material | Solid carbide |
| Cutting diameter (D1) | 10 mm |
| Corner radius | R0.5 mm |
| Cutting length (Ap1) | 30 mm |
| Overall length (L) | 75 mm |
| Shank diameter (D) | 10 mm |
| Suited to | Steels and harder materials |
Buy Helixor corner radius end mills in South Africa
For CNC milling machines and machining centres. Hold it in a matching 10mm ER collet or a rigid BT tool holder to keep run-out low. Need cutting data? Use our free CNC feed & speed calculator, or WhatsApp our team on +27 83 570 6175. See the full Helixor HX55 Corner Radius Endmills range and all Helixor solid carbide end mills. Stocked items are dispatched within 24 hours, with 1–3 working day delivery nationwide.
