NX 6mm Compression Cut 2 Flute Carbide Endmill

Original price was: R595.13.Current price is: R546.25. Incl. VAT R475.00 excl. VAT

In stock
YOUR DELIVERED PRICE, EARLYAbout R696.25 deliveredOne item, including applicable VAT and standard SA delivery.Cart quantity, address, discounts and selected delivery can change the final total. Every charge is shown before you place the order.
Tool dimensions
Cutting diameter (D1)
6mm
Cutting length (Ap1)
25mm
Overall length (L)
60mm
Shank diameter (D)
6mm
✓

Genuine toolingOfficial Nexcut, Helixor & Zycron supply

↗

Fast dispatch1–3 working days on stocked items

⌁

Local supportHelp matching geometry, grade and size

Secure paymentProtected checkout through trusted South African gateways
VISAMastercardPayfastYoco
Nationwide delivery from R150Free standard delivery over R1,750

Description

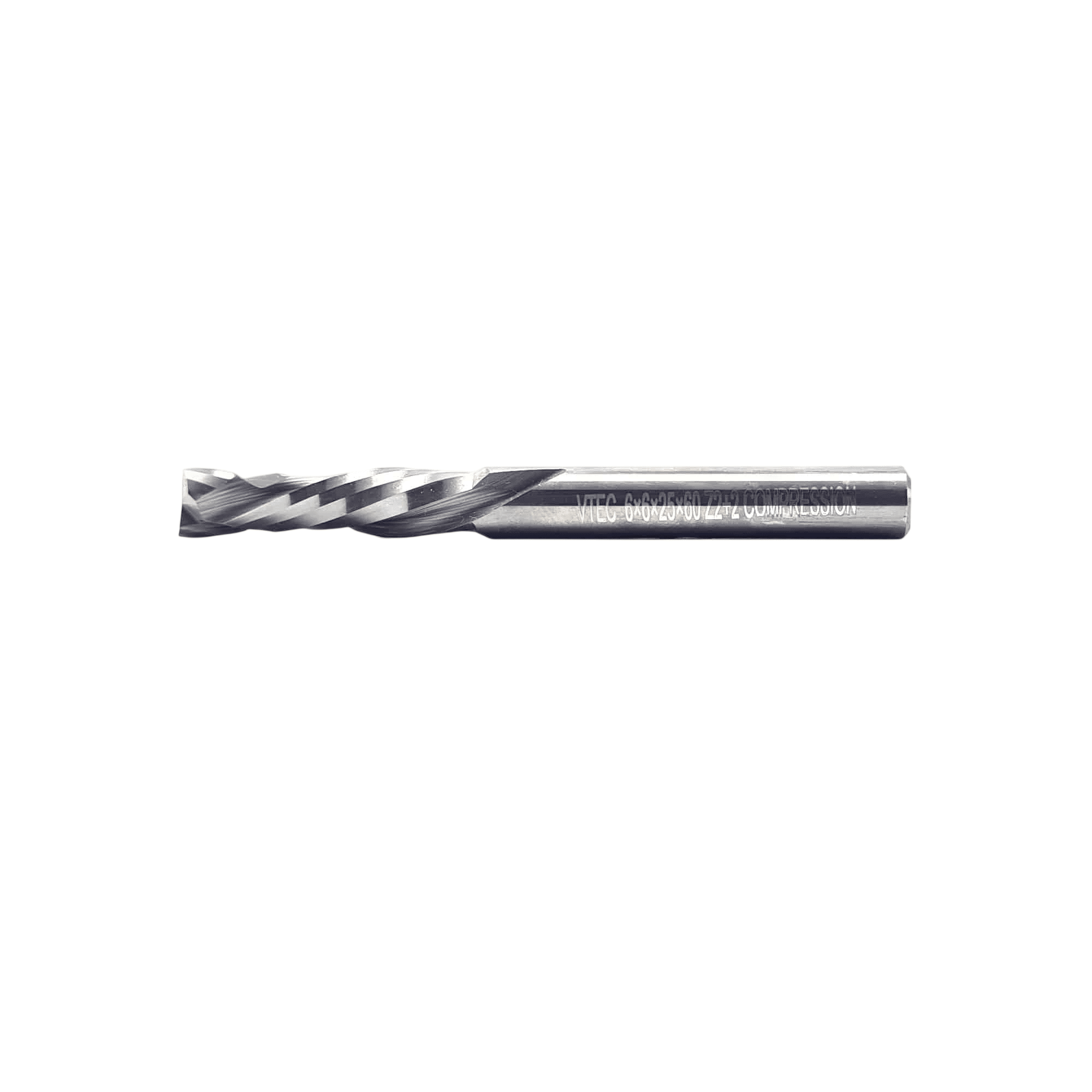

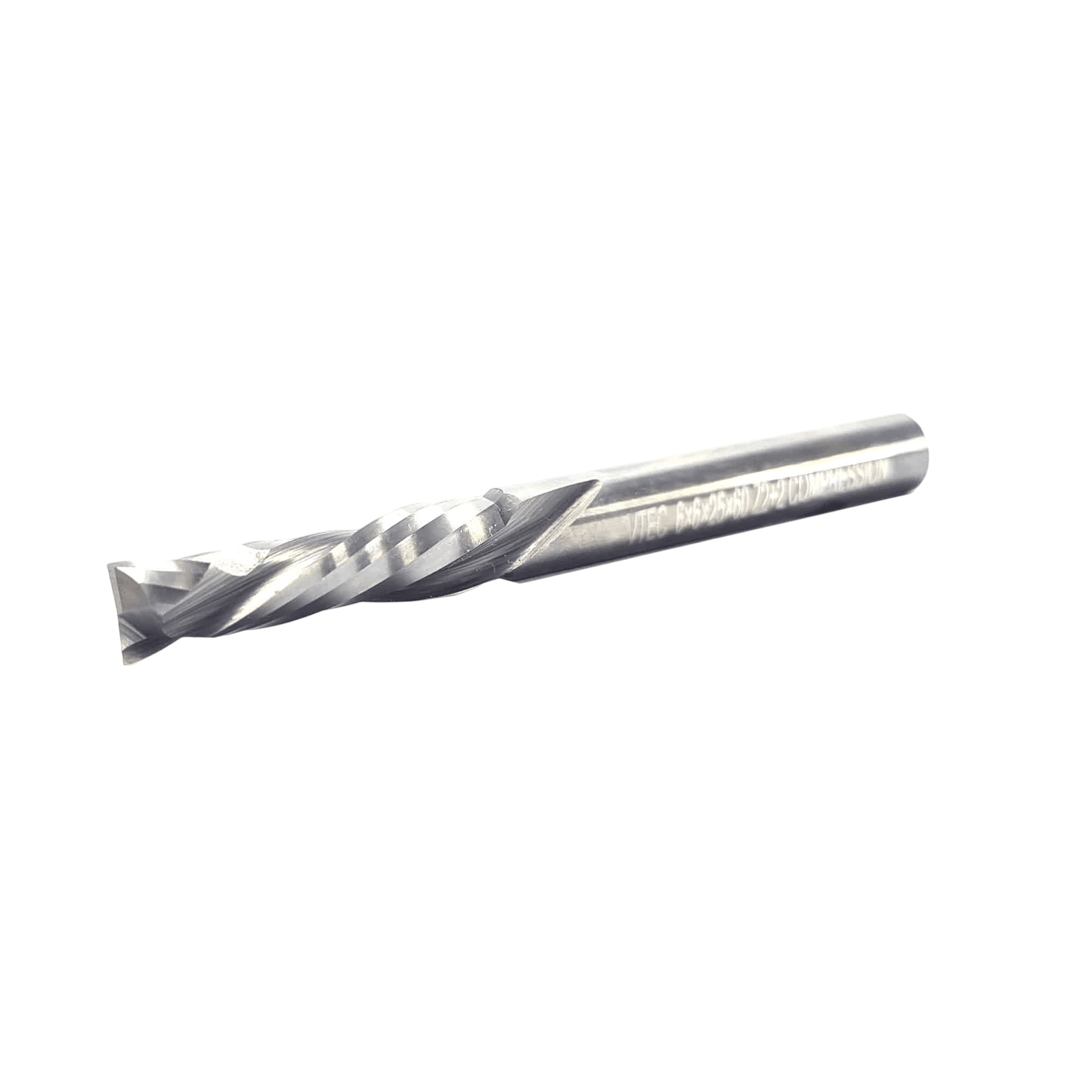

The Nexcut 6mm Compression Cut 2 Flute Carbide Endmill is a 2-flute solid carbide compression router bit for clean, chip-free CNC routing on both the top and bottom faces of the board. The compression geometry pulls chips upward from the bottom and pushes them downward from the top, so laminated and double-sided materials are left with smooth edges and less finishing work.

How a compression router bit works

A compression bit combines an up-cut section at the tip with a down-cut section above it. The up-cut section keeps the bottom face clean while the down-cut section stops the top face from lifting or chipping. For the full compression effect, set the cut depth so that both sections engage the material.

Best materials

  • Melamine-faced and laminated board
  • MDF
  • Plywood
  • Solid wood

Typical applications

  • Through-cutting and nesting of panels
  • Profiling
  • Slotting

Specifications

Brand Nexcut
Type Compression (up-cut + down-cut)
Flutes 2
Material Solid carbide
Cutting diameter (D1) 6 mm
Cutting length (Ap1) 25 mm
Overall length (L) 60 mm
Shank diameter (D) 6 mm
Suitable machines CNC routers and table-mounted routers

Buy compression router bits in South Africa

Suitable for CNC routers and table-mounted routers. Fit it with a matching 6mm ER collet for accurate run-out. Not sure about spindle speed and feed rate? Use our free CNC feed & speed calculator, or WhatsApp our team on +27 83 570 6175. Browse the full range of Compression Router Bits and Nexcut CNC router bits. Stocked items are dispatched within 24 hours, with 1–3 working day delivery nationwide.

Sizing Information

SHANK DIAMETER 6mm
SHANK LENGTH 35mm
CUTTING DIAMETER 6mm
CUTTING LENGTH 25mm
OVERALL LENGTH 60mm
NUMBER OF FLUTES 2
CUTTING STYLE Up/Down Cut
