Description

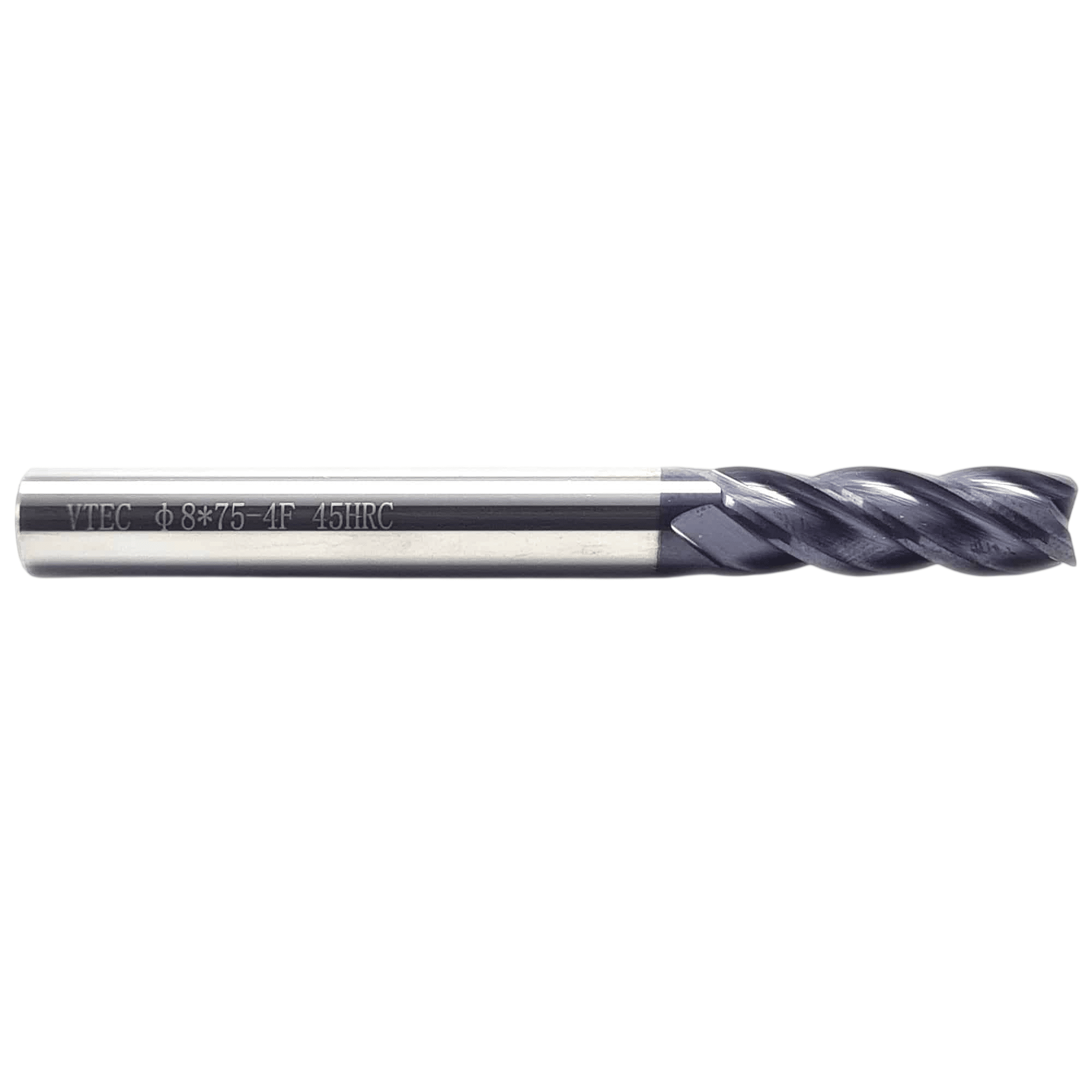

The Helixor HX45 8mm 4 Flute Square Carbide End Mill is a 4-flute square-end solid carbide end mill for stable, accurate CNC milling of steel and other ferrous materials. It is made from sub-micron tungsten carbide with an AlTiN coating for heat resistance and longer tool life, and its eccentric relief and variable-pitch flute geometry help reduce chatter for clean, accurate finishes.
Why choose this 4 flute carbide end mill?
Four flutes give more cutting edges in contact with the work, so a 4-flute end mill can run higher feed rates and leave a better side-wall finish than a 2-flute tool. It is the everyday choice for side milling, profiling, finishing and light slotting in steel. Variable pitch breaks up the harmonic vibration that causes chatter.
Recommended materials
- Carbon and alloy steels
- Tool and die steels (pre-hardened, up to 45 HRC)
- Cast iron
- Other ferrous materials
Typical applications
- Side milling and profiling
- Finishing passes
- Shoulder milling
- Light slotting
Specifications
| Brand | Helixor |
|---|---|
| Type | Square end |
| Flutes | 4 |
| Material | Solid carbide (sub-micron tungsten carbide) |
| Coating | AlTiN |
| Cutting diameter (D1) | 8 mm |
| Cutting length (Ap1) | 25 mm |
| Overall length (L) | 75 mm |
| Shank diameter (D) | 8 mm |
| Suited to | Steels up to 45 HRC |
Buy Helixor 4 flute carbide end mills in South Africa
For CNC milling machines and machining centres. Hold it in a matching 8mm ER collet or a rigid BT tool holder to keep run-out low. Need cutting data? Use our free CNC feed & speed calculator, or WhatsApp our team on +27 83 570 6175. See the full Helixor HX45 4 Flute Carbide Endmills range and all Helixor solid carbide end mills. Stocked items are dispatched within 24 hours, with 1–3 working day delivery nationwide.
