Description

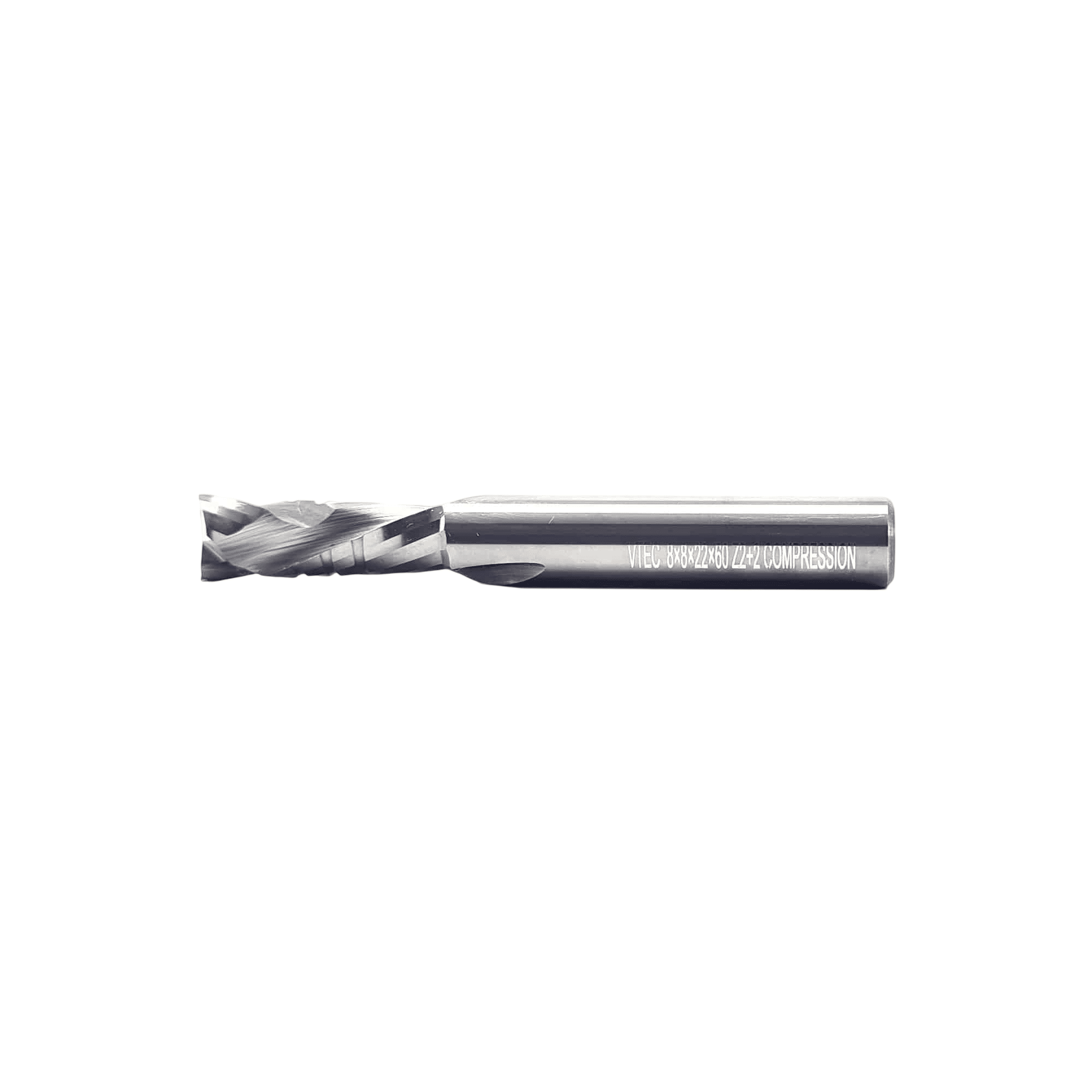

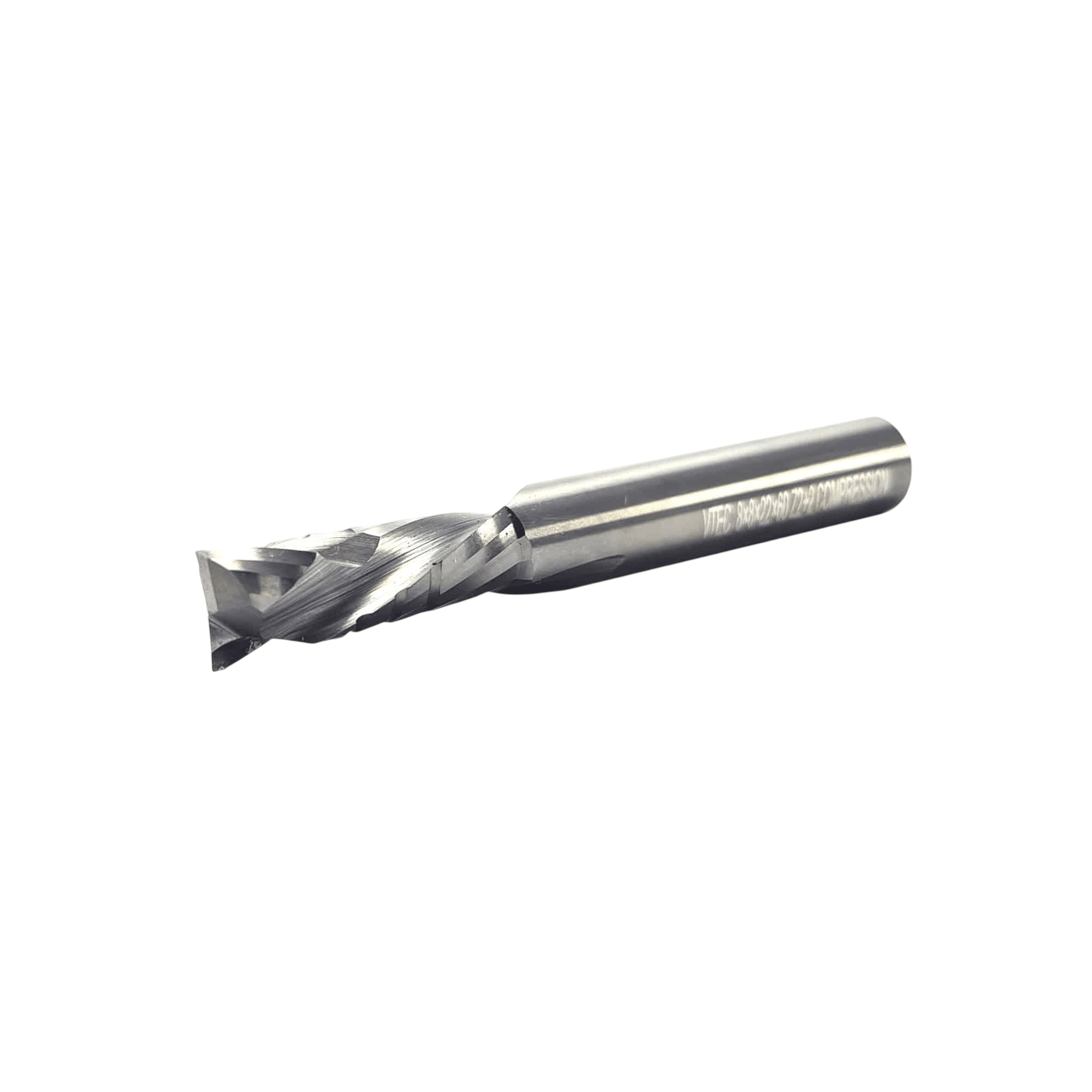

The Nexcut 8mm Compression Cut 2 Flute Carbide Endmill is a 2-flute solid carbide compression router bit for clean, chip-free CNC routing on both the top and bottom faces of the board. The compression geometry pulls chips upward from the bottom and pushes them downward from the top, so laminated and double-sided materials are left with smooth edges and less finishing work.
How a compression router bit works
A compression bit combines an up-cut section at the tip with a down-cut section above it. The up-cut section keeps the bottom face clean while the down-cut section stops the top face from lifting or chipping. For the full compression effect, set the cut depth so that both sections engage the material.
Best materials
- Melamine-faced and laminated board
- MDF
- Plywood
- Solid wood
Typical applications
- Through-cutting and nesting of panels
- Profiling
- Slotting
Specifications
| Brand | Nexcut |
|---|---|
| Type | Compression (up-cut + down-cut) |
| Flutes | 2 |
| Material | Solid carbide |
| Cutting diameter (D1) | 8 mm |
| Cutting length (Ap1) | 22 mm |
| Overall length (L) | 60 mm |
| Shank diameter (D) | 8 mm |
| Suitable machines | CNC routers and table-mounted routers |
Buy compression router bits in South Africa
Suitable for CNC routers and table-mounted routers. Fit it with a matching 8mm ER collet for accurate run-out. Not sure about spindle speed and feed rate? Use our free CNC feed & speed calculator, or WhatsApp our team on +27 83 570 6175. Browse the full range of Compression Router Bits and Nexcut CNC router bits. Stocked items are dispatched within 24 hours, with 1–3 working day delivery nationwide.
