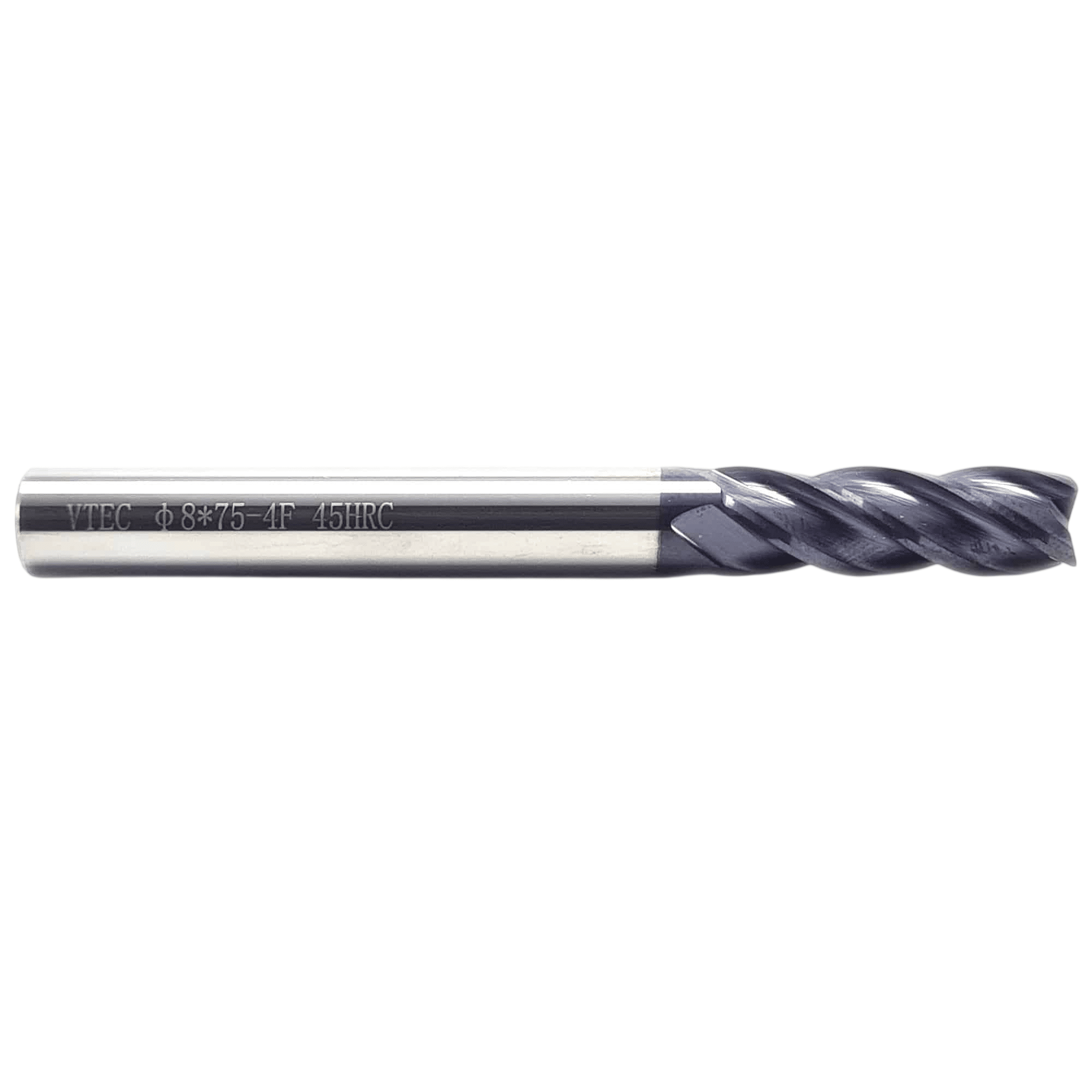

HX45 8mm Long Series 4 Flute Square Carbide End Mill

Original price was: R529.00.Current price is: R476.10. Incl. VAT R414.00 excl. VAT

In stock
YOUR DELIVERED PRICE, EARLYAbout R626.10 deliveredOne item, including applicable VAT and standard SA delivery.Cart quantity, address, discounts and selected delivery can change the final total. Every charge is shown before you place the order.
Tool dimensions
Cutting diameter (D1)
8MM
Cutting length (Ap1)
45MM
Overall length (L)
100MM
Shank diameter (D)
8MM
✓

Genuine toolingOfficial Nexcut, Helixor & Zycron supply

↗

Fast dispatch1–3 working days on stocked items

⌁

Local supportHelp matching geometry, grade and size

Secure paymentProtected checkout through trusted South African gateways
VISAMastercardPayfastYoco
Nationwide delivery from R150Free standard delivery over R1,750

Description

The Helixor HX45 8mm Long Series 4 Flute Square Carbide End Mill is a 4-flute square-end solid carbide end mill for stable, accurate CNC milling of steel and other ferrous materials. It is made from sub-micron tungsten carbide with an AlTiN coating for heat resistance and longer tool life, and its eccentric relief and variable-pitch flute geometry help reduce chatter for clean, accurate finishes.

Why choose this 4 flute carbide end mill?

Four flutes give more cutting edges in contact with the work, so a 4-flute end mill can run higher feed rates and leave a better side-wall finish than a 2-flute tool. It is the everyday choice for side milling, profiling, finishing and light slotting in steel. Variable pitch breaks up the harmonic vibration that causes chatter.

Recommended materials

  • Carbon and alloy steels
  • Tool and die steels (pre-hardened, up to 45 HRC)
  • Cast iron
  • Other ferrous materials

Typical applications

  • Side milling and profiling
  • Finishing passes
  • Shoulder milling
  • Light slotting

Specifications

Brand Helixor
Type Square end
Flutes 4
Material Solid carbide (sub-micron tungsten carbide)
Coating AlTiN
Cutting diameter (D1) 8 mm
Length Long series (extended reach)
Cutting length (Ap1) 45 mm
Overall length (L) 100 mm
Shank diameter (D) 8 mm
Suited to Steels up to 45 HRC

Buy Helixor 4 flute carbide end mills in South Africa

For CNC milling machines and machining centres. Hold it in a matching 8mm ER collet or a rigid BT tool holder to keep run-out low. Need cutting data? Use our free CNC feed & speed calculator, or WhatsApp our team on +27 83 570 6175. See the full Helixor HX45 4 Flute Carbide Endmills range and all Helixor solid carbide end mills. Stocked items are dispatched within 24 hours, with 1–3 working day delivery nationwide.

Sizing Information

SHANK DIAMETER 8mm
SHANK LENGTH 60mm
CUTTING DIAMETER 8mm
CUTTING LENGTH 40mm
OVERALL LENGTH 100mm
NUMBER OF FLUTES 4
CUTTING STYLE Square
